      Adding Sensors "Over-the-Air"

      Download our mobile app from the Apple App Store and Google Play to quickly and easily add a Sapphire Eye sensor to your tenant in the cloud. Just search for "7SIGNAL".  You may also use the app to add sensors connected via Ethernet.

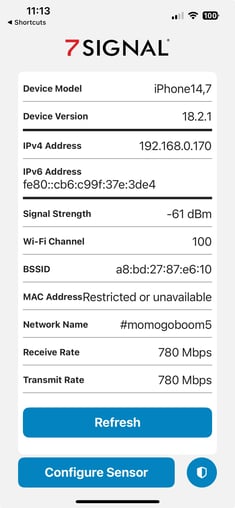

      Additionally, Apple device owners may use the app to run an Shortcut and view your devices Wi-Fi connection details. Just tap the "Refresh" button.  This function is also available on Android. See below...

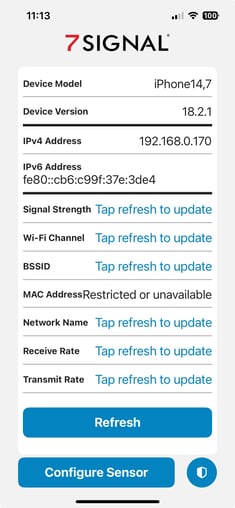

      • 7signal screen 1 7signal screen 2

        Adding a Sensor

        Tap the "Configure Sensor" button to begin the process.

        • First, you will log into your 7SIGNAL account, the same way you do today. If you are using SAML based SSO, then logging in may be a multi-step process depending on your organization.
        • "Allow" or grant the 7SIGNAL app the camera permission when asked, then the camera app will launch.

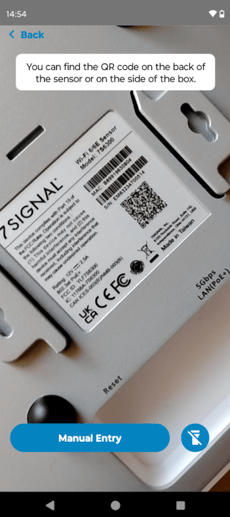

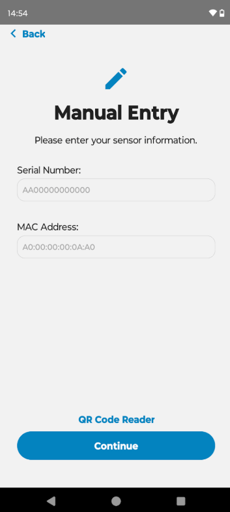

        • Use the camera app to scan the QR code on the bottom of 7S6300 sensors.  For all other model sensors, you can manually type in the serial number and MAC address to add it to your account.
      • Next, you will select your "group" name, which should correspond to the name of your organization, followed by selecting your connection type, either Wi-Fi or Ethernet.

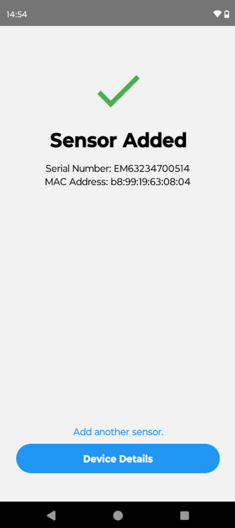

      If the sensor is connected via Ethernet, then select the Ethernet option and tap Continue. The sensor is immediately added to your account and you are finished!

      Go to Configurator and run the Setup Wizard or Quick Setup utility.

        • To configure your sensor "over-the-air," choose Wi-Fi for connection type and tap Continue.
        • The sensor goes into "access point mode" and you will be asked to join its network. Choose "Join" when asked.
        • After joining the sensor's network, it will immediately start scanning the area for  Wi-Fi networks. Identify a network of yours for the sensor to join.
      It doesn't matter which Wi-Fi network the sensor joins.  For simplicity, choose a guest network that is "open" or only requires a pre-shared key for authentication.  The goal is to simply give the sensor an Internet connection so that it may register itself in your tenant.
        • Once it joins your Wi-Fi network, the sensor is added to your tenant and process is complete. Go to Configurator and run the Setup Wizard or the Quick Setup utility for this sensor.


      Configuration for OTA Mode

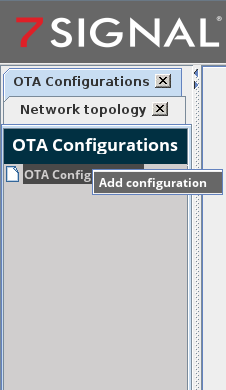

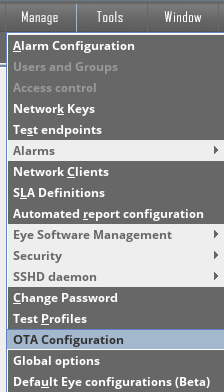

      To configure sensors for over-the-air (OTA) mode, go to Configurator and under the Manage menu, select 'OTA Configuration'. Next, right-click OTA Configurations and click 'Add configuration'.



      Define Overall OTA Settings

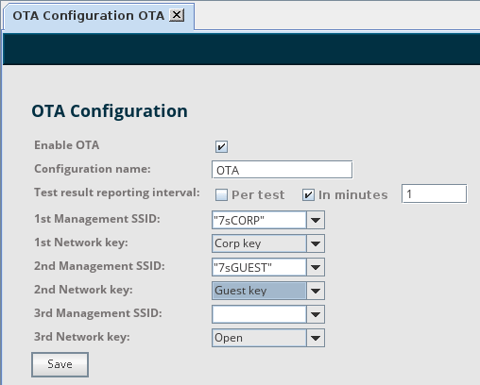

      Check the 'Enable OTA' box and additional configuration items will appear. Give your configuration a name and select a '1st Management SSID', that is, the network that will be used as the backhaul to send data to the 7SIGNAL cloud. Add a second and third management SSID for backup purposes, if desired.

      Define Default Configuration for Sapphire Eye Sensors

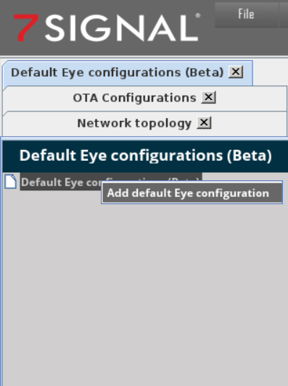

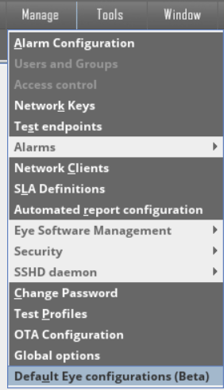

      Next, go to Manage > Default Eye Configurations. Right-click Default Eye Configurations and click 'Add default Eye configuration.

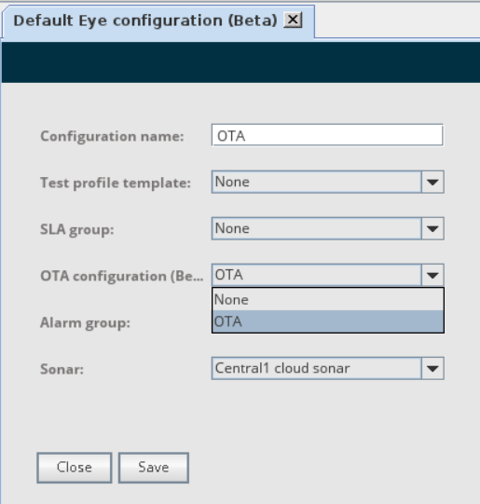

      Select the OTA configuration just created in the drop-down list. Type a name for this configuration and click 'Save'.

      Define Default Band for Backhaul

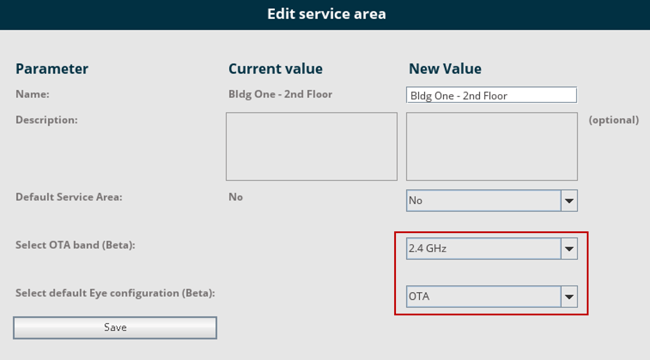

      Go to your Topology and right-click on a location or service area where OTA sensors will be placed and select Edit.

      Select the OTA band that will be used for data backhaul. When selected, this band will not be used to testing.

      Use the drop down to select your newly created default Eye configuration. Click 'Save'.

      Edit service area
